Easy Operate Crawler Mounted Drill Rig 100 - 300m Drilling Depth Free Maintaining
Product Introduction
1. Borehole water well drilling machine Appliance :
a. Keeping bracket is installed on the hoist to form a double wheel support structure, able to withstand strong blow
b. Vertical box are fixed by four groups of bearings to ensure that the rotary machine has sufficient rigidity to overcome gravel layer and other complex geological conditions.
c. The machine is equipped with national patent technology---taper clutch, with characteristics of strong transmission torque, easy operation and free maintenance.
d. 53 x 59 drilling rod adopted, high rigidity and strong delivery torque.
2. borehole water well drilling machine Feature:
a.Drilling rig is mainly used for geological general investigation and exploration, road and tall building foundation exploration.
b. kinds of hole in concrete structure, river levees, sub-grade grouting hole ,drilling and direct grouting, civil wells and earth temperature central air-conditioner,etc
Product Description
Core drilling rig is suited for the applications of general exploration and investigation, geophysical prospecting, road and construction surver, blast holes and other drilling operations.
1. With hydraulic automatic feeding device, elevated drilling efficiency.
2. The holding mechanism with upper spherical jaws is used as substitute for chuck. The rod can be replaced without shutdown.
3. Centralized handles, easy operation, safe and reliable.
4. The drilling rig, pump and diesel engine are installed on a common base frame in order to have a compact structure and occupy small field area.
5. Light weight, high detachability, easy transportation and suitable for the operations in plains or mountain areas.
Specification:
| Model | XY-100 | XY-130 | XY-150 | XY-200 |
| Drilling depth | 100m | 130m | 180m | 200m |
| Maximum open hole diameter | 200mm | 220mm | 220mm | 300mm |
| End hole caliber | 75mm | 75mm | 75mm 46mm | 75mm |
| Drill rod caliber | 50mm | 50mm | 50mm 42mm | 60mm |
| Drilling angle | 90°~75° | 90°~75° | 90°~75° | 90°~75° |
| Drill weight(No include power) | 480 510kg | 560kg | 610kg | 975kg |
Features
1, Drilling depth can reach 100-300m
2, Steels quality is good, torque is large
3, Easy operation, free-maintaining
4, For various complex stratum, such as pebble bed, aggregate bed.
5, Saving money, compact construction, easy moving
6, Applicable to industry, residents drilling, ground drilling, large diameter, deep drilling, footage fast, flexible and efficient.
Parameter
| Total weight | 4.6ton |
| Dimensions | 3800 x 1600 x 2450mm |
| Hole diameter | 115-280mm |
| Drill depth | 200m |
| Feeding stroke | 3000mm |
| Walking speed | 2.5km/h |
| Climbing capacity | 30degree |
| Ground clearance | 250mm |
| Working air pressure | 1.7 - 3.0Mpa |
| Air consumption | 17 - 35m³/min |
| Rated power | 65kw |
| Rotation speed | 50 - 70rpm |
| Rotation torque | 5000 - 6500N.m |
After-sales service
1. New machine provides technical train.
2. Once anything goes wrong with the machine by normal using,our technical person must appear at the first time no matter where you are.
3. When the machine should be maintained,you will receive the reminding from us.
4. According to different geological conditions,we will recommend different construction plans for you.
5. Remind you which are wearing parts,so you can prepare enough.
6. 24 hours respond to your quality problem
7. Other customer's reasonable request
Product Tags:
|
|

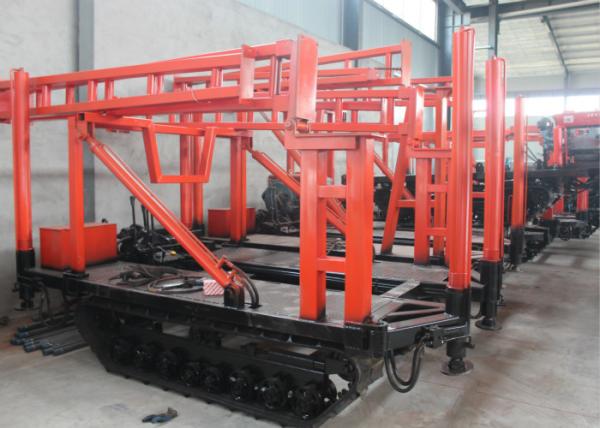

100m 75mm 4.6 Tons Crawler Mounted Drill Rig Images
|
